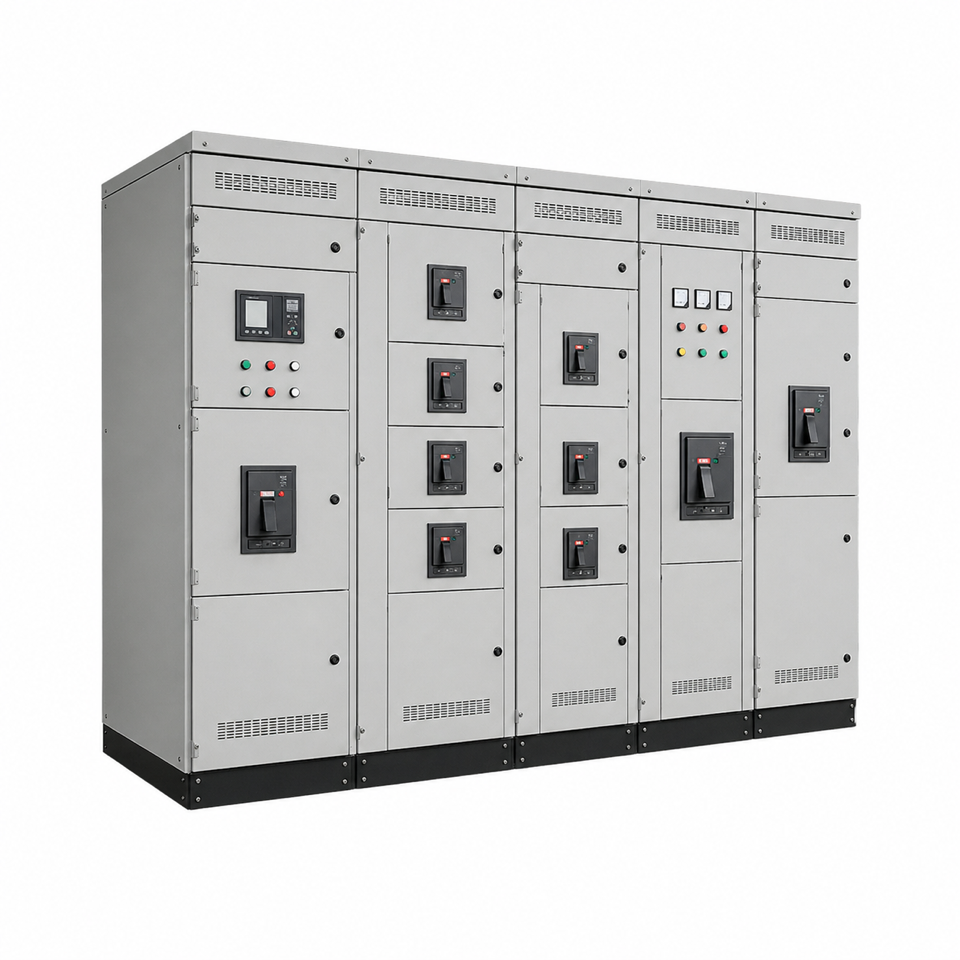

Low-Voltage Switchgear (UL 891)
Strictly compliant, footprint-optimized, and available in 10-14 weeks. ERONZON EP low-voltage switchgear follows UL 891 and NEC standards and supports up to 12,000A distribution for data centers, PV facilities, heavy industrial plants, and commercial buildings.
- Core CapabilityERONZON EP low-voltage switchgear is built to UL 891 and NEC standards for heavy-duty power distribution. The platform supports bus ratings up to 12,000A and advanced arc-flash mitigation, helping projects move past the long lead times common in traditional switchgear procurement.
- Target ApplicationsDesigned for mission-critical environments that need fast deployment and high fault tolerance, including data centers, PV facilities, heavy industrial plants, and high-rise commercial buildings.
- Engineering and Safety SystemsThe energy-reducing maintenance switching system (ERMS) aligns with NEC 240.87, interfaces with trip units to reduce clearing time, and includes a front maintenance-mode switch for safer live inspection.
- Modular TopologySupports independently mounted vertical devices or horizontally grouped panel sections, with front, rear, and side access for maintenance and retrofit work in existing electrical rooms.
Product Advantages
Standardized modular engineering supports a 10-14 week delivery window and reduces schedule uncertainty for critical distribution equipment.
Compatibility with major UL489 or UL1066 certified breakers helps reduce lifecycle cost and future service downtime risk.
Deep integration of controls and distribution equipment helps compress electrical-room space and free up more usable area in high-value facilities.
High short-circuit withstand ratings, copper buswork, and maintenance-mode design improve personnel protection and system stability.
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | Up to 600VAC |
| Bus Current Rating | 800A to 12,000A |
| Short-Circuit Withstand | Up to 100kA at 600V |
| Enclosure Protection | NEMA 1 indoor / NEMA 3R outdoor |
| Internal Busbars | High-conductivity bare copper bus; optional tin-plated copper |
| Arc-Flash Mitigation | ERMS compliant with NEC 240.87 |
| Topology and Access | Vertical independent or horizontal grouped sections, with three-side service access |
| Lead Time | 10-14 weeks |
Dedicated Engineering Support
Heavy-duty low-voltage switchgear configuration directly affects electrical-room footprint and the overall project schedule. Submit your single-line diagram (SLD) and load requirements to secure a 10-14 week production window.
Our team will respond within 24 hours.
